Front view of tilted Husky climbing a mountain

ROLLOVERDETECTIONSYSTEM

Focus on the mission not the terrain.

Rollover detection monitor mounted inside cabin of Husky

Focus on the mission not the terrain

The RDWS advises the user of impending dangerous vehicle rollover conditions based on terrain, operation, and vehicle limitations. Weatherproof components and rugged construction ensure suitability for commercial and military vehicles.

Exclusive Real-Time Roll Risk Estimates

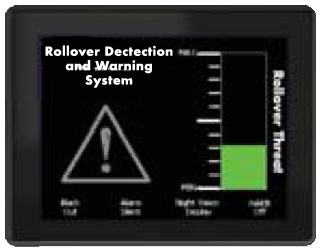

Rollover detection screen showing green
Rollover detection screen showing yellow caution
Rollover detection screen showing red warning

Information screen continuously updates current conditions.

Key Features

The RDWS advises the user of impending dangerous vehicle rollover conditions based on terrain, operation, and vehicle limitations. Weatherproof components and rugged construction ensure suitability for commercial and military vehicles.

Backside of rollover detection monitor with mounting bracket

Quick and easy installation

The simplicity of the system, with only the display and IMU, keeps installation quick and easy minimizing retrofit costs.

Rollover detection monitor mounted inside cabin of Husky

Multiple operator alert options

By combining an easy to read 3.5” color display and proportional audio alerts, the RDWS is designed to give vehicle occupants all the data they need.

Close-up of Inertial Measurement Unit device

Proprietary IMU sensor package

A high accuracy inertial measurement unit (IMU) provides an exclusive “Roll Risk Estimate” so operators can adjust the vehicle’s position to avoid dangerous situations.

Key Benefits

Multiple audible alert options

Multiple visual alert options

Unique threat calculation method

Proprietary IMU sensor package

Customizable operating modes

User specific displays and settings

Compatible with other TREC-Drive products

Custom display mounting options

Versatile mounting system

IMU sensor

Information screen continuously updates current conditions

Specifications

Certified MIL-STD-810G
  • Sand and dust
  • Vibration
  • Moisture
  • Shock
  • Altitude
  • High and low temperature
  • Height
Dimensions
  • Display Dimensions
  • Length: 5.5 in (140 mm)
  • Height: 4.5 in (114 mm)
  • Depth: 2 in (51 mm)
  • IMU Dimensions
  • Length: 3.8 in (97 mm)
  • Height: 3.8 in (97 mm)
  • Depth: 1.8 in (46 mm)
Display and Settings
  • J1939 CANbus for data output/input
  • Onboard relay for controls
  • Emergency egress actuation
  • Options for additional inputs/outputs
Audible Alert Options
  • External buzzer up to 110 db
  • Output for intercom systems
Power consumption
  • 9–32 V operating voltage
  • Low current consumption < 200 mA
Proprietary IMU Sensor
  • Ensure accurate threat calculation
  • Minimizes false alarms
Security
Pin code locking option
Threat Calculation
  • Accuracy for static and dynamic events
  • Adjustable parameters for fine tuning
Visual Alert Options
  • Standard TFT color display
  • Low cost LED display

Works with these products

Learn more

Cover of the Rollover Detection and Warning System brochure

Rollover Detection and Warning System

Vehicle sensor that alerts the operator of impending dangerous vehicle rollover conditions based on terrain, operation, and vehicle limitations.
